Below are some instructions on installing the lights yourself.

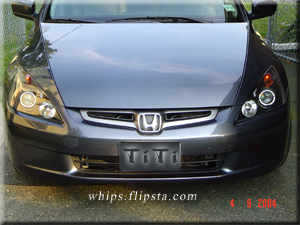

Well, they told me to call up and make sure my HID's would be in, on Friday, so i did, and of course 'the guy never came' so it was a wrap. i got so pissed, cuz i saw it happening a week ago, that I decided to actually take the leap of faith and install the headlights my damn self. I must say.. for one who has not done any electrical work since 1993, i actually felt comfy wiring up the angel eyes to the parking signal. Of course it's not difficult, it's just the idea of ME pulling apart a fairly new car and doing electrical work that scares me. In any case, pics are to the left, with some insight on what to do. I used this page at cardomain for instructions on how to get the bumper off and all, and they were great.
Below are some things to look for when doing this yourself. More pictures will come up when i finish downloading them. For the info to do this myself, I went to CARDOMAIN and found it there. Click on CARDOMAIN for more info.
-->CARDOMAIN<--
First of all, to remove the bumper, you need to take the radiator cover off. This is attached to the car with 10 clips along the top, and then the front end of it is attached to the grill itself, with 4 clips.
View Page 6 for illustration on removing that radiator cover.
Then underneath the car, there are a total of 6 clips, and 4 10mm bolts. The bolts and 2 clips are along the front edge of the bumper, and to the rear, underneath, are 4 clips that hold the back of the bumper to what would be a splash guard i guess. (No pics).
Once you have all the clips removed, there are two phillips head screws right in front of the front wheels, that hold the bumper, to the fender, one on each side. Remove these, and pull the bumper away from the side of the car, then begin to pull forward.(No pics)
This is closeup of of the bumper clips attached to the bottom of the headlight. Basically you yank the bumper out of these, after pulling it OUT from the sides in front of the front wheels. This is the driver side headlight. There is also one more clip to the left of this light, where the bumper needs to be pulled from.
To get the headlight out, you need to remove bolts as shown below.
This is after you get the headlight out. Those same clips, are attached by metal bar, to the headlight. There is one bolt here, where you loosen it, and attach it to the new headlight.
The rest is really self explanatory once you get that bracket attached. The wiring for the angel eyes, is red to red/black and white to black. The lights' wiring is red and white, and the stock wiring has a red/black wire, and a black wire to the signal light.
Once you have the wiring done, and secured, and you test all the lights, reinstall everything reverse of removal, and you'll be all set to go!
If I do another set, I will take more pics. Sorry...
